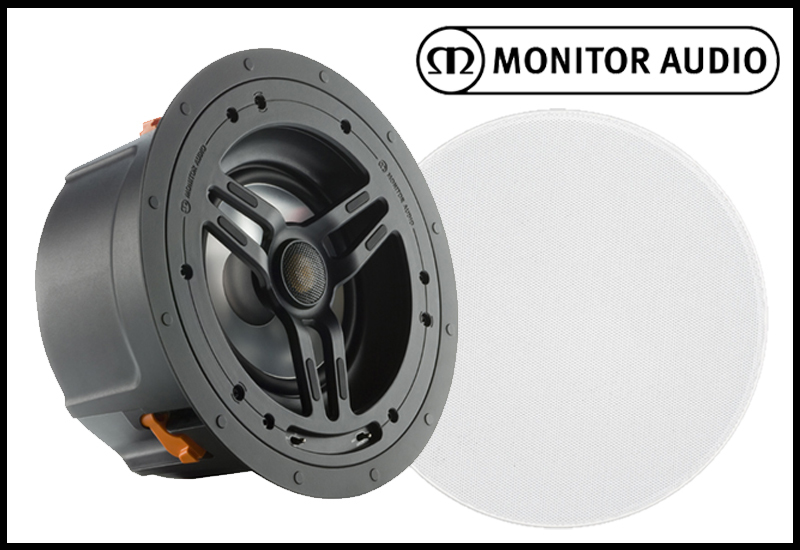

Monitor Audio Architectural in-ceiling speakers

Monitor Audio Pro-65

The Pro-65 is priced for entry-level but its material and design sophistication is of a higher order, meeting Monitor Audio’s world-famous quality standards.





£69

Monitor Audio CS140

The CS140 in-ceiling model features a proprietary 4-inch MMP II cone and a pivoting version of our acclaimed C-CAM Gold Dome tweeter.



Engineered for excellent detail resolution and complete with either round or square grilles, the CS140 will deliver great sound with super-discreet aesthetics.

Please specify a round or square grille option when ordering.



  • Frequency Response 75 Hz – 30 kHz
  • Nominal Impedance 6 ohms
  • Sensitivity (1W@1M) 85 dB
  • Maximum SPL 102.8 dBA
  • Power Handling (RMS) 50 W
  • Recommended Amplifier Requirements 10 – 50 W
  • Drive Unit Complement 1 x 4" MMP II cone bass driver. 1 x 1" (25 mm) C-CAM pivoting Gold Dome tweeter
  • Acoustic Configuration 2-way
  • Overall Dimensions (Including Grille (H x W)) Round: 180.2 mm (71/8") Square: 176.7 x 176.7 mm (615/16 x 615/16")
  • Mounting Depth 98.6 mm (37/8")
  • Cut-Out Hole Diameter 149 mm (57/8")
  • Fixing Type 3 position Tri-Grip dog fixings
  • Connection Gold plated ‘push’ type terminals
  • Grille Attachment Magnetic
  • Construction Material Mineral filled ABS, RoHS compliant
  • Weight 1.18 kg (2 lb 10 oz)
  • Pre-Construction Bracket CB4 Pre-Construction Bracket (Pink)
  • Back Box CCBOX-R

£109

Monitor Audio CS160

The CS160 in-ceiling model couples a 6-inch MMP II driver with a pivoting C-CAM Gold Dome tweeter.



Delivering great imaging and dynamics from a brilliantly compact design, the CS160 is perfect for high performance, ultra-discreet custom-installed systems.

Please specify a round or square grille option when ordering.



  • Frequency Response 60 Hz – 30 kHz
  • Nominal Impedance 6 ohms
  • Sensitivity (1W@1M) 88 dB
  • Maximum SPL 107.2 dBA
  • Power Handling (RMS) 70 W
  • Recommended Amplifier Requirements 15 – 70 W
  • Drive Unit Complement 1 x 6" MMP II cone bass driver. 1 x 1" (25 mm) C-CAM pivoting Gold Dome tweeter
  • Acoustic Configuration 2-way
  • Overall Dimensions (Including Grille (H x W)) Round: 204.2 mm (81/16") Square: 199.2 x 199.2 mm (713/16 x 713/16")
  • Mounting Depth 99 mm (37/8”)
  • Cut-Out Hole Diameter 170 mm (611/16”)
  • Fixing Type 3 position Tri-Grip dog fixings
  • Connection Gold plated ‘push’ type terminals
  • Grille Attachment Magnetic
  • Construction Material Mineral filled ABS, RoHS compliant
  • Weight 2.10 kg (4 lb 10 oz)
  • Pre-Construction Bracket CB5 Pre-Construction Bracket (Blue)
  • Back Box CCBOX-R | CMBOX-R

£134

Monitor Audio CS180

£164

Monitor Audio C165

Incorporating a 6 1/2 inch MMP II bass driver with Monitor Audio’s signature C-CAM Gold Dome tweeter to provide high performance sound, ease-of-drive, and wide frequency response and dispersion.

Optimum imaging and set-up are established via a pivoting tweeter and high-frequency (+3 dB / 0 dB /-3 dB) level adjustment.

Optional square or premium grille can be used with this model.



SPECIFICATION:



Frequency Response 60 Hz – 25 kHz

Nominal Impedance 6 ohms

Sensitivity (1W@1M) 88.5 dB

Maximum SPL 107.4 dBA

Power Handling (RMS) 65 W

Recommended Amplifier Requirements 20 – 65 W

Drive Unit Complement 6 1/2" MMP II cone bass driver 1" C-CAM pivoting Gold Dome tweeter

Adjustment Controls HF Level Switch (+3 dB / 0 dB / -3 dB)

Overall Diameter (Including Grille) 250 mm (913/16")

Overall Depth (Including Grille) 120 mm (43/4")

Mounting Depth 116 mm (49/16")

Cut-Out Hole Diameter 211 mm (81/4")

Optional Square Grille - Outer Dimensions 249 x 249 mm (9 3/16")

Fixing Type 3 position Tri-Grip dog fixings

Construction Material Mineral filled ABS, RoHS compliant

Weight 1.92 kg (4 lb 4 oz)

Pre-Construction Bracket (OPTIONAL) CB6 Pre-Construction Bracket (Purple)

Back Box (OPTIONAL) CCBOX-R / CMBOX-R



£114

Monitor Audio C180

£144

Monitor Audio C165-T2

£144

Monitor Audio C180-T2

£179

Monitor Audio C265

£164

Monitor Audio C280

£194

Monitor Audio C265-IDC

£229

Monitor Audio C280-IDC

£259

Monitor Audio C380-IDC

£329

Monitor Audio C265-FX

£189

Monitor Audio CSS230 'Slimline'

£249

Monitor Audio C380-FX

£279

Monitor Audio CP-CT260

The CP-CT260's pivoting C-CAM® tweeter is joined by a 6” C-CAM bass driver - and high frequency level adjustment by a boundary compensation control for optimum bass tuning when positioned near room corners.



TECHNOLOGY:

  • Pivoting C-CAM gold dome tweeter and C-CAM bass driver.
  • High overall efficiency.
  • High frequency level adjustment (+/-3dB).
  • Boundary compensation controls.
  • Our innovative Tri-Grip® fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
  • Magnetic and easily removable steel grille.
  • Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
  • Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.
  • Frequency Response
  • 66Hz - 25kHz

SPECIFICATION:

  • Impedance (Nominal) 6 Ohms
  • Sensitivity (1W@1M) 88 dB
  • Power Handling (RMS) 65 W
  • Recommended Amp Requirements 20 - 65 W
  • Crossover Frequency / Slope 2.6 kHz @ 12 dB / Octave
  • Drivers Unit Complement 2-Way
  • 6˝ C-CAM® cone bass driver
  • 1˝ C-CAM pivoting gold dome tweeter
  • Adjustment Controls HF Level Switch (+3dB / 0dB / -3dB) Boundary Compensation Switch
  • Overall Diameter:(including grille) 285 mm
  • Overall Depth:(including grille) 155mm
  • Cut Out Diameter 244m
  • Mounting Depth 151mm
  • Fixing Type 3 position Tri-Grip® dog leg fixing
  • Construction Material Mineral Filled ABS Plastic
  • (RoHS2 Compliant)
  • Pre-Construction Bracket
  • CB8 (Green)
  • Weight 2kg (6lb 2oz)
  • Cable Connection Gold plated 'push' type terminals

£199

Monitor Audio CP-CT380

Alongside a pivoting C-CAM® tweeter, the CP-CT380 model introduces a powerful 8” C-CAM bass driver featuring the Rigid Surface Technology (RST®) cone surface employed by our range-topping home audio speaker systems.



TECHNOLOGY:

  • Pivoting C-CAM gold dome tweeter.
  • C-CAM bass driver featuring Rigid Surface Technology (RST).
  • High overall efficiency.
  • High frequency level adjustment (+/-3dB).
  • Boundary compensation controls.
  • Our innovative Tri-Grip® fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
  • Magnetic and easily removable steel grille.
  • Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
  • Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.

SPECIFICATION:

  • Frequency Response 50Hz - 25kHz
  • Impedance (Nominal) 6 Ohms
  • Sensitivity (1W@1M) 89 dB
  • Maximum SPL 109.6 dBA
  • Power Handling (RMS) 120 W
  • Recommended Amp Requirements 30 - 120 W
  • Crossover Frequency / Slope 2.5 kHz @ 12dB / Octave
  • Drivers Unit Complement 2-Way 8˝ C-CAM® RST® cone bass driver 1˝  C-CAM pivoting gold dome tweeter
  • Adjustment Controls HF Level Switch (+3dB / 0dB / -3dB) Boundary Compensation Switch
  • Overall Diameter:(including grille) 309 mm
  • Overall Depth:(including grille) 187mm
  • Cut Out Diameter 274mm
  • Mounting Depth 172.80mm
  • Fixing Type 3 position Tri-Grip® dog leg fixings
  • Construction Material Mineral Filled ABS Plastic
  • (RoHS2 Compliant)
  • Pre-Construction Bracket CB10 (Light Brown)
  • Weight 3.74kg (8lb 4oz)
  • Cable Connection Gold plated 'push' type

£299
